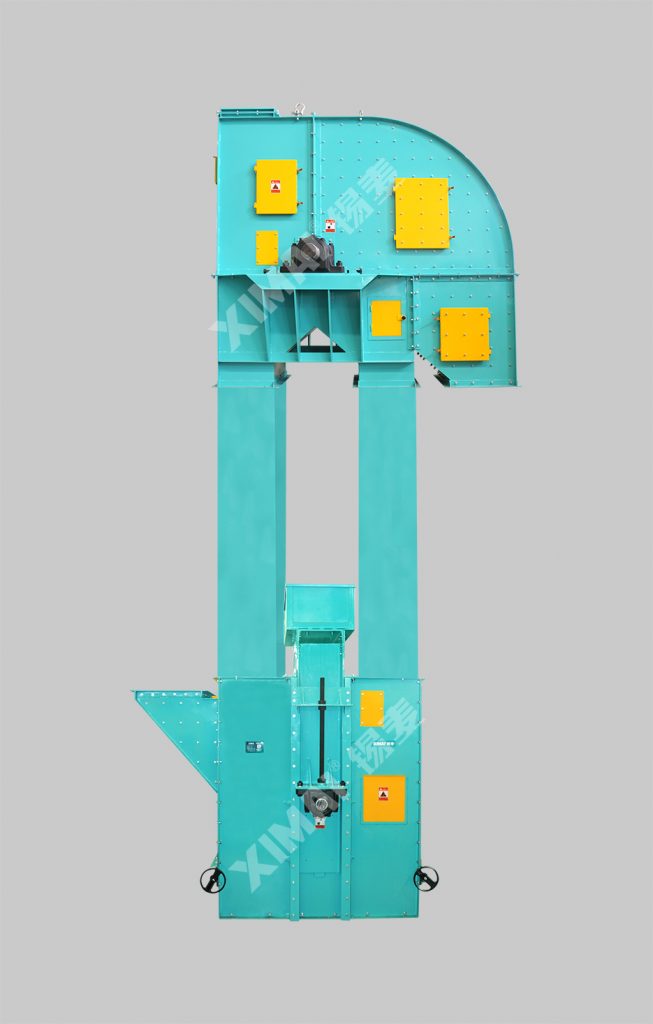

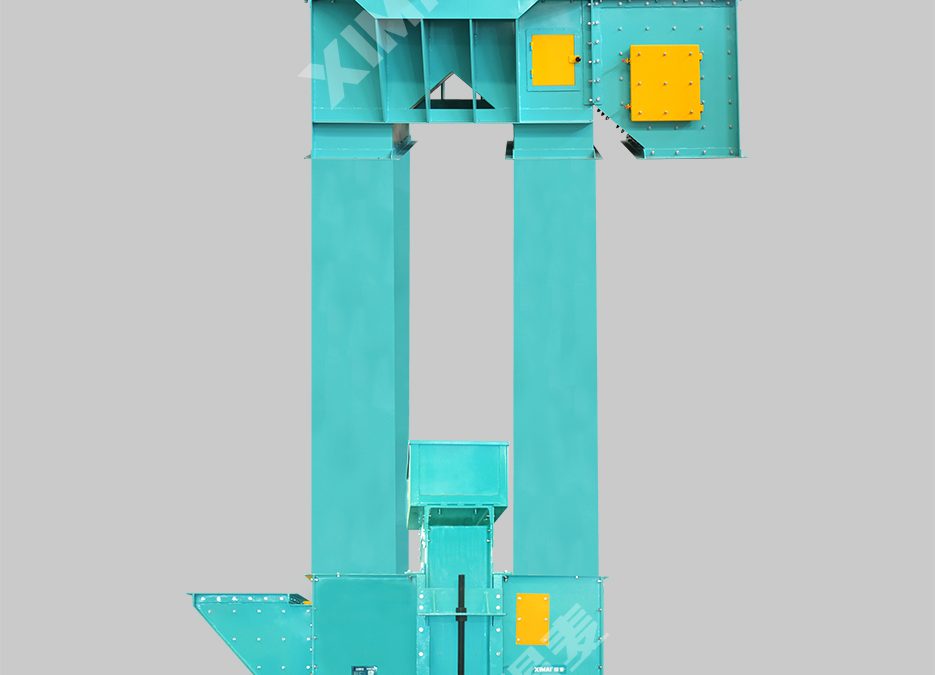

XMTDTG bucket elevator
Characteristics
● Low failure rate
● Long service life
● High production, low reflux
● Compact structure, save space
Application & Advantages
Application：
XMTDTG bucket elevators are suitable for vertical lifting of granular material powder in grain and oil, food, wheat, feed, chemical industry, coal mine, oil and fat departments。
Features:
1.Powder and granular materials are commonly used, equipped with explosion-proof cover and pressure balancing device.
2. High production, low reflux, low failure rate and long service life, the efficiency is ensured
3.The height and output of the hoist can be changed according to the characteristics of the process, and the adaptability is enhanced.
4.Novel appearance design, safe and reliable work, simple structure, complete function, good sealing and low noise
產(chǎn)品細節

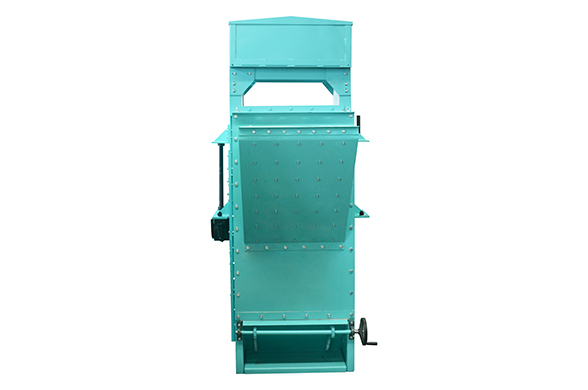

Design
The cylindrical structure is supported by side plates at both ends, which can be installed vertically or suspended; the rotor equipped with four plates is equipped with organic external bearings at both ends，
The rotor can be driven by a transmission device (basic type) or a separate transmission device at the feed port end or the discharge port end.
技術(shù)規格
Technical data：
| Model | Max. Conveying（t/h） | Line Speed（m/s） | Head Diameter（mm） | Width（mm） | Max. Lifting Height（m） |
|---|---|---|---|---|---|
| XMTDTG48/22D | 1500 | 2.5-3.5 | 1219 | 2400 | 80 |
| XMTDTG48/22D | 1200 | 2.5-3.5 | 1016 | 1800 | 60 |
| XMTDTG48/18C | 1000 | 2.5-3.15 | 1016 | 1500 | 60 |
| XMTDTG100/56*2 | 800 | 2.5-3.15 | 1000 | 1200 | 60 |
| XMTDTG100/47*2 | 600 | 2.5-3.15 | 1000 | 1000 | 60 |
| XMTDTG80/47*2 | 500 | 2.0-2.8 | 800 | 1000 | 50 |
| XMTDTG80/56 | 300 | 2.0-2.8 | 800 | 1000 | 50 |
| XMTDTG80/47 | 240 | 2.0-2.8 | 800 | 500 | 50 |
| XMTDTG80/33 | 150 | 1.6-2.5 | 800 | 350 | 50 |
| XMTDTG60/33 | 100 | 1.6-2.5 | 600 | 350 | 45 |
| XMTDTG60/28 | 80 | 1.6-2.5 | 600 | 300 | 45 |
| XMTDTG50/28 | 50 | 1.6-2.3 | 500 | 300 | 45 |
| XMTDTG40/23 | 25 | 1.5-2.0 | 400 | 250 | 40 |
| XMTDTG36/18 | 15 | 1.2-1.6 | 360 | 200 | 30 |
| XMTDTG36/13 | 10 | 1.2-1.6 | 360 | 150 | 30 |
| XMTDTG30/11 | 5 | 0.8-1.3 | 300 | 130 | 25 |
