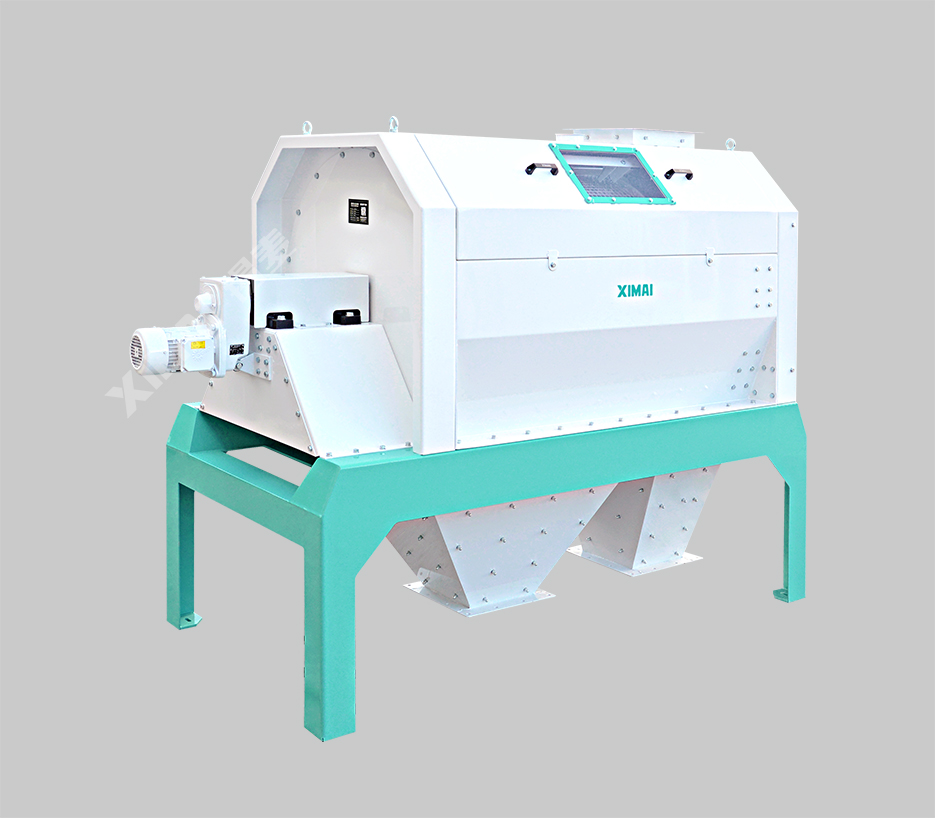

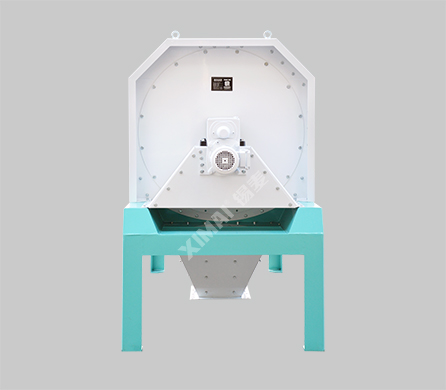

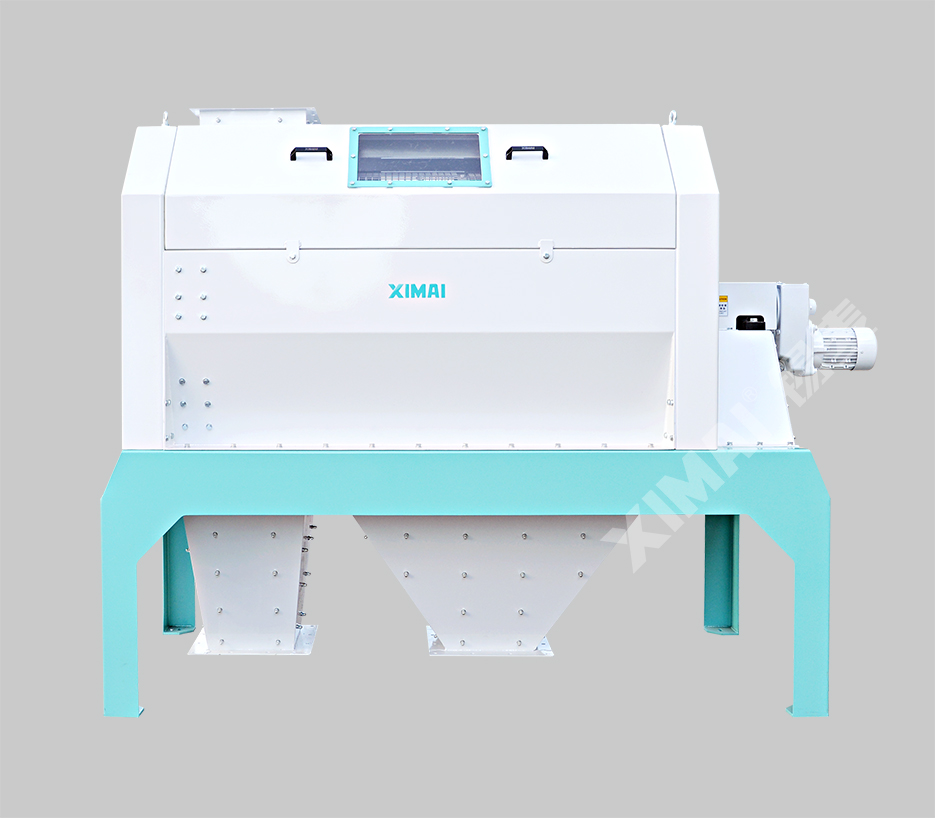

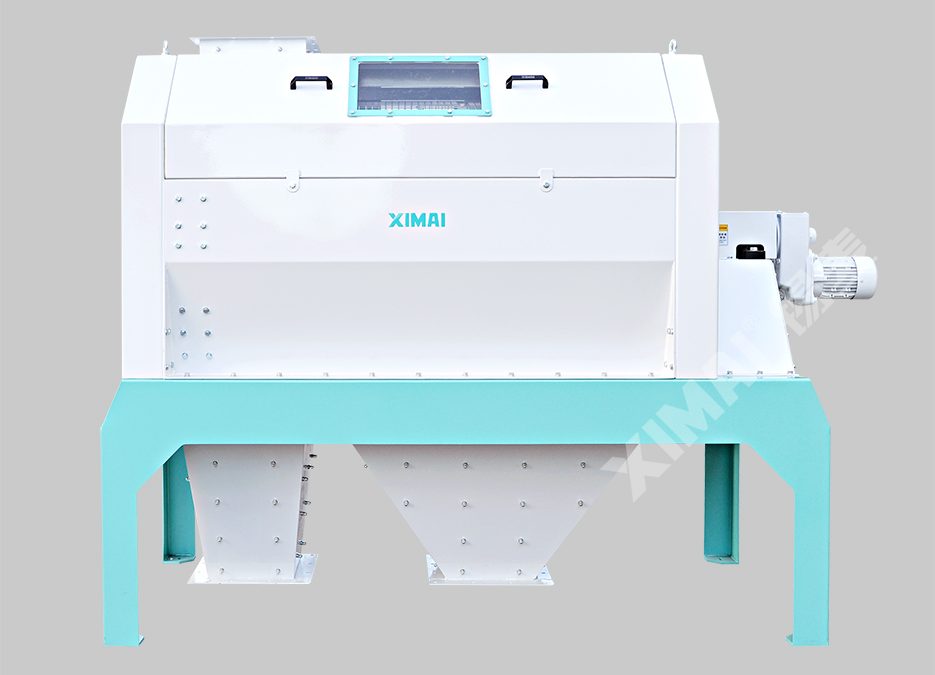

XMSCY Cyliner pre-cleaning Sieve
Characteristics
● Large yield
● Easy maintenance
● Long life
● Good impurity removing effect
Application&advantage
Application：
Cylinder pre-cleaning screen is mainly used for raw grains intake section to remove big miscellaneous (grain ear, stem, pole, mud and stone, hemp rope) and light miscellaneous such as grass scraps, mud, etc from raw grains ,avoiding any breakdown in back-end equipment.
Characteristics：
1. .Improve cleaning yield in grain intake section.
2.Protect the back-end equipment effectively,and improving fault-free running time
3.3.Better design, longer service life and easier maintenance of equipment.
Machine Details
Technical Specifications
Technical Data：
| Model | Productivity（t/h） | Sieve Diamter（mm） | Sieve Length（mm） | Air suction（m3/h） | Power（kw） | Weight(mm) |
|---|---|---|---|---|---|---|
| XMSCY200 | 180-250 | φ950 | 1100 | 12 | 0.55 | 820 |
| XMSCY400 | 360-500 | φ1350 | 1500 | 20 | 1.5 | 1380 |
| XMSCY600 | 540-750 | φ1800 | 1670 | 32 | 3.0 | 2914 |
| XMSCY800 | 720-1000 | φ1800 | 2200 | 42 | 3.0 | 3282 |
