XMFZSQ Intensive dampener
Features
● Reasonable water distribution
● Ideal wheat moistening effect
● Large dampening capacity and high quality
Application &Advantage
Application：
XMFZSQ series intensive dampener used for humidifying the grains . The?newly?developed?twin rotor?rotating?system?can?ensure?that?water?penetrates?into?grain?efficiently?and?evenly.?The?amount?of?water?added?can?reach?7%,??the?damage?and?breakage?
rate?of?the?materials?is?very?low.

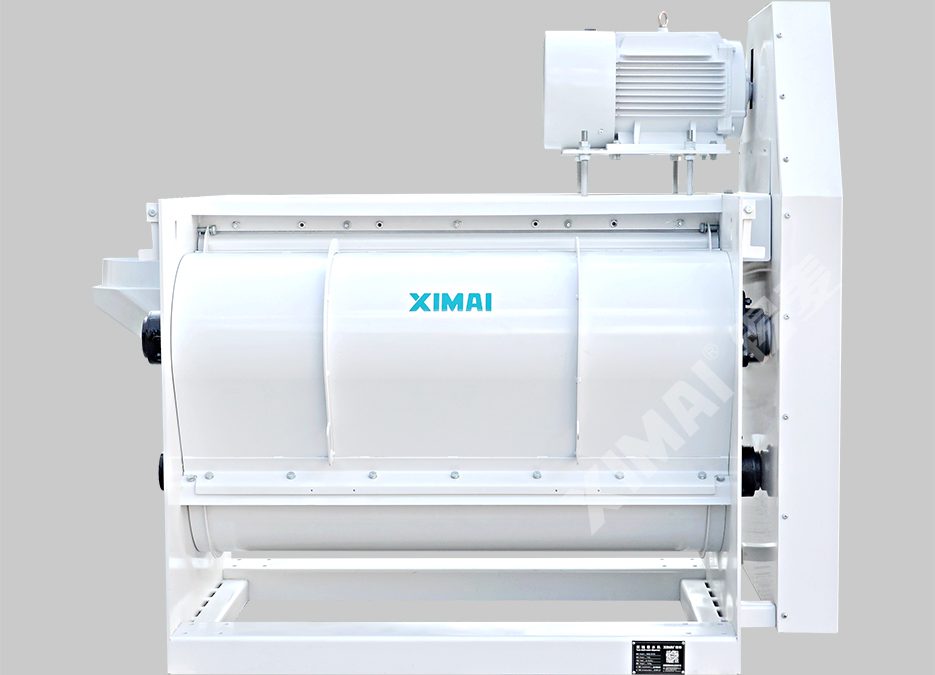

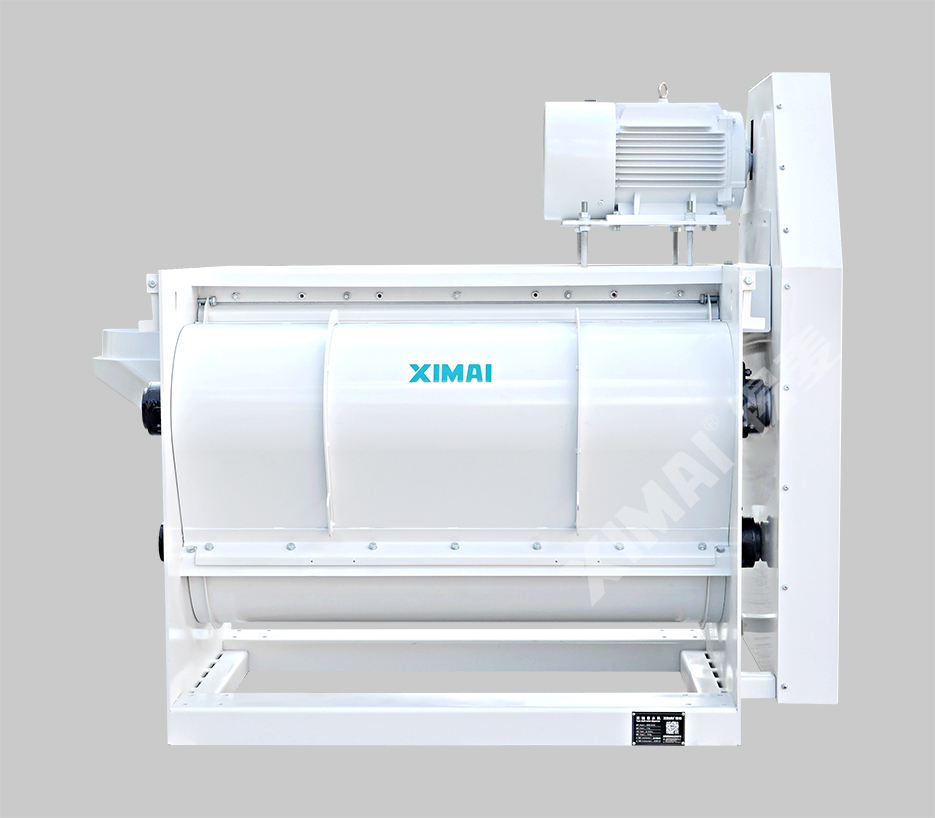

Machine details
Working principle
The grain enters the machine through the feed inlet at the front end of the water machine, and water is added by another inlet. The grain is strongly mixed by the double-rotor rotating system and permeated by water in the feed machine. Finally, the completely water-immersed grain is discharged through the outlet in the tangent direction.
Technical specification
Technical Data：
| Model | Productivity（t/h） | Power（kw） | Weight（kg）Net W. | G.W. | Shipping | Volume（m3） |
|---|---|---|---|---|---|---|
| XMFZSQ-30/100 | 1-8 | 4.0 | 760 | 815 | 845 | 2.9 |
| XMFZSQ-30/100 | 8-12 | 5.5 | 760 | 815 | 845 | 2.9 |
| XMFZSQ-30/150 | 12-16 | 5.5 | 970 | 1055 | 1100 | 3.7 |
| XMFZSQ-30/150 | 16-24 | 7.5 | 970 | 1055 | 1100 | 3.7 |
| XMFZSQ-45/150 | 24-36 | 11.0 | 1430 | 1615 | 1710 | 6.7 |
| XMFZSQ-45/150 | 36-48 | 15.0 | 1430 | 1615 | 1710 | 6.7 |
